In Stock

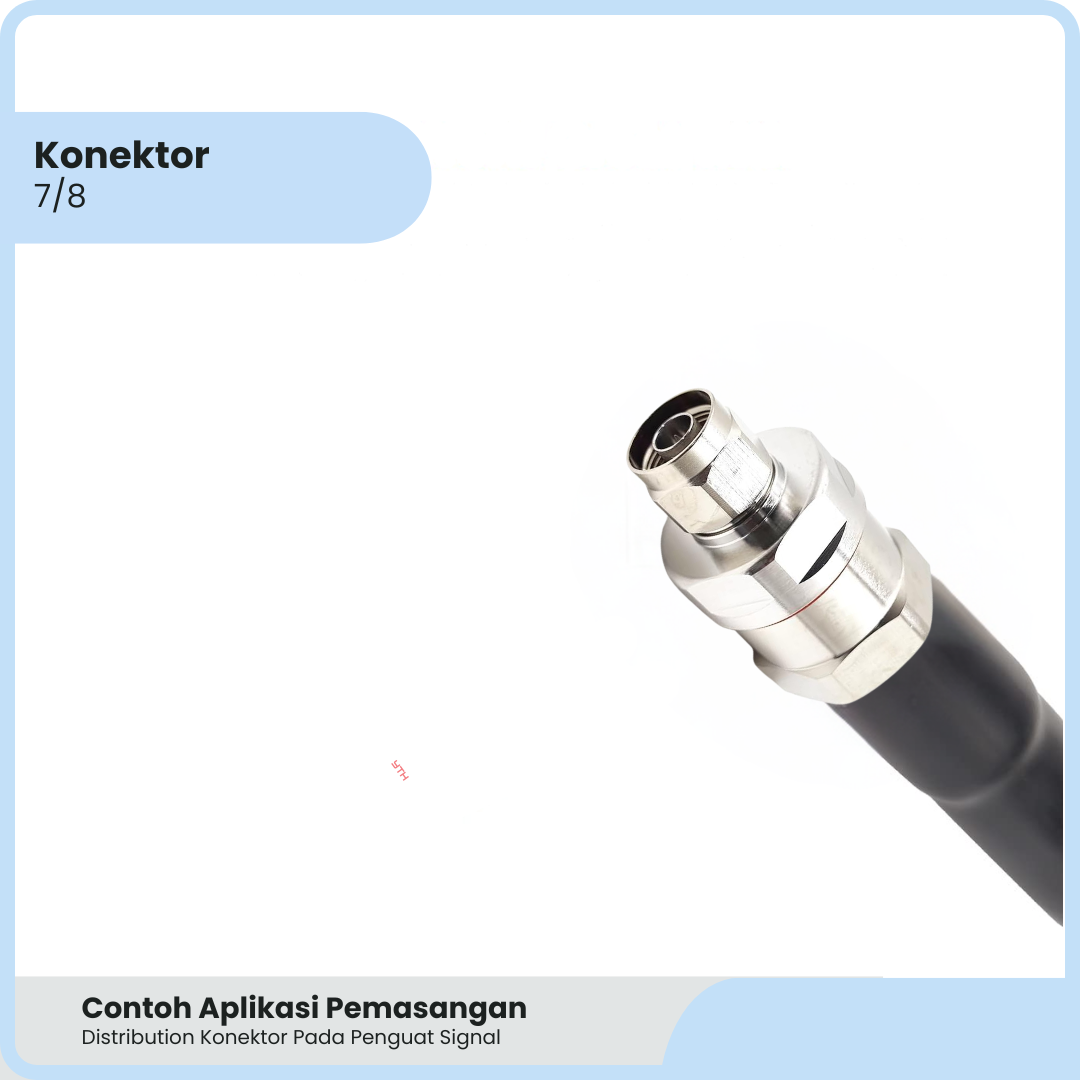

Digunakan untuk terminasi kabel 7/8 yang akan dihubungkan dengan device/terminasi yang mempunyai port/konektor type N-Male: system repeater penguat signal, system komunikasi radio HT, Feeder antenna, system komunikasi Nir Kabel WLL, GPS, LMR, WLAN, WISP, WiMax, SCADA, Antena Seluler.
Konektor ini sangat mudah dipasang,handal dan tahan lama dapat digunakan dengan Kabel Low Loss dengan impedansi 50 ohm.

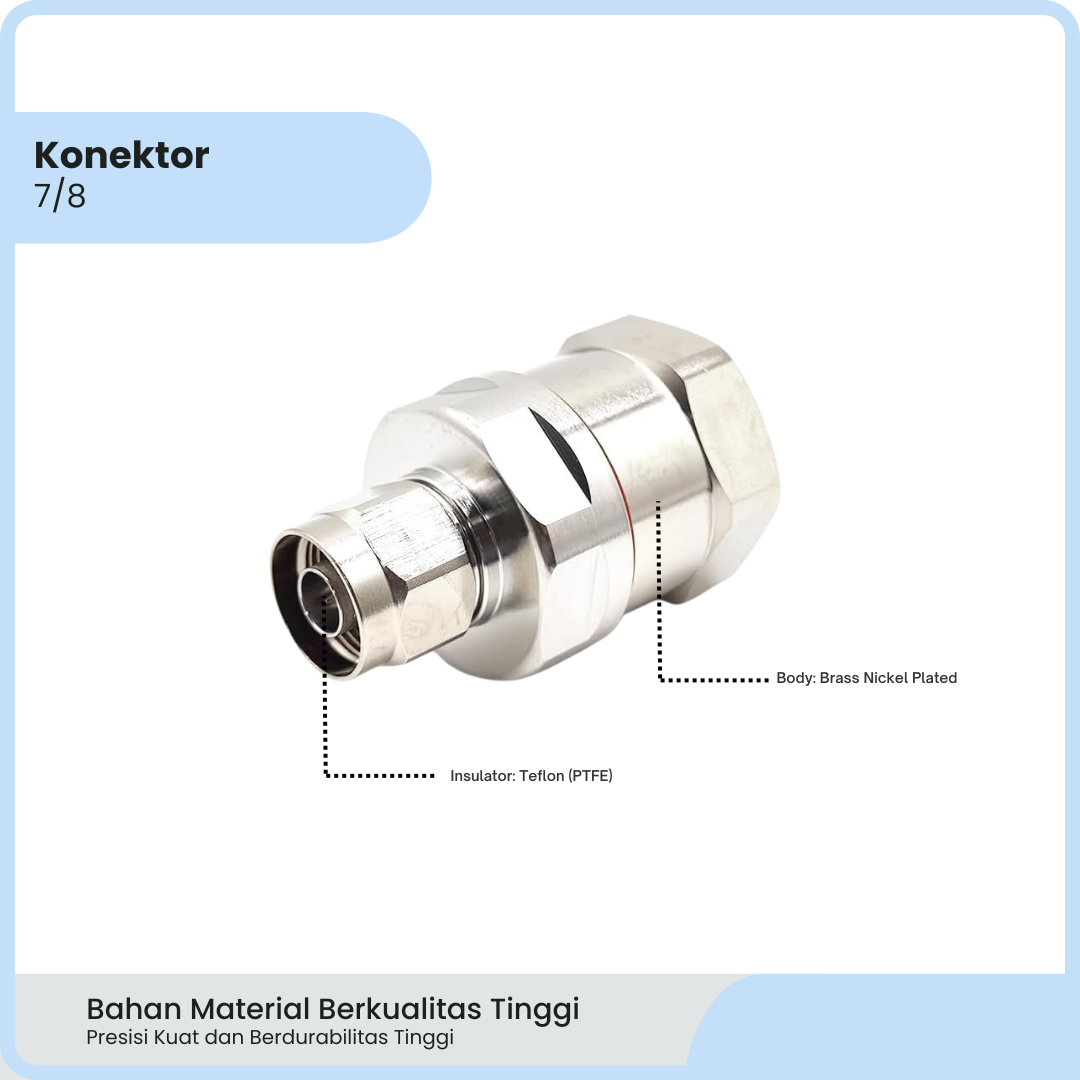

Bahan & Material :
– Bodi kuningan berlapis nikel
– Inner Pin berbahan kuningan berlapis emas
– Isolator Teflon (PTFE) untuk memastikan sinyal yang murni tanpa interferensi
– Salt spray test for 48 hours ,VSWR below 1.3(DC-6G)
Paket termasuk:
– Only Konektor
| Product Specifications | |
| Weight | 800 g |
| Impedance | 50 ohm |
| Frequency Range | 0~13 Ghz |
| VSWR | Straight type ≦ 1.3max / R/A type ≦ 1.5max |
| Dielectric Withstanding Voltage | 2500V (RMS) |
| Working Voltage | 1000 V rms |
| Center Contact Resistance | ≦ 1.0 mΩ (Milliohms max.) |
| Outer Contact Resistance | ≦ 0.2 mΩ (Milliohms max.) |
| Insulation Resistance | ≧ 5 x 10³ mΩ (Megohms min.) |
| Weight | 0,8 kg |
|---|---|
| Impedance | 50ohm |
| Frequency Range | 0~13 Ghz |
| VSWR | Straight type ≦ 1.3max / R/A type ≦ 1.5max |
| Dielectric Withstanding Voltage | 2500 V rms |
| Working Voltage | 1000 V rms |
| Center Contact Resistance | ≦ 1.0 mΩ (Milliohms max.) |
| Outer Contact Resistance | ≦ 0.2 mΩ (Milliohms max.) |
| Insultation Resistance | ≧ 5 x 10³ mΩ (Megohms min.) |
