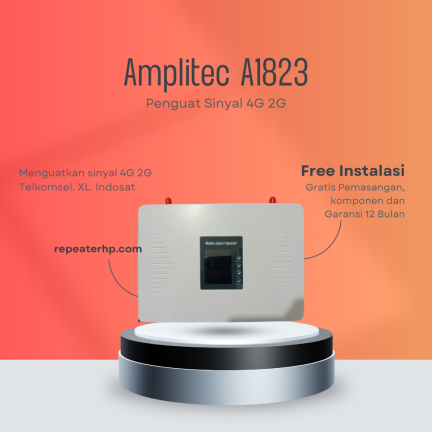

Penguat Sinyal HP 4G 2G (Amplitec)
Rp 9.500.000| Kode | A1823 |
| Stok | Tersedia (20) |
| Kategori | Repeater, Amplitec |
- Menguatkan sinyal Telkomsel. XL dan Indosat
- Garansi 12 bulan
- Termasuk pemasangan Jabotabek
Penguat Sinyal HP 4G 2G (Amplitec)
Penguat Sinyal HP 4G 2G – Alat penguat sinyal HP 4G 2G merek Amplitec, dapat menguatkan sinyal Telkomsel, XL. Indosat, dapat meng-cover area indoor atau dalam ruangan dengan coverage 200m2.
Harga Penguat Sinyal HP 4G 2G
Harga penguat sinyal HP 4G 2G sudah termasuk gratis pemasangan Jabotabek dan komponen penguat sinyal HP, plus garansi 12 bulan, tidak termasuk force majeure.
Spesifikasi
| Item | Uplink | Downlink | |
| Frequency Band | LTE | Any one of band 1, 2, 3, 4, 5, 7, 8, 20, 28 | |
| NR | Any one of band NR 41, 77, 78 | ||
| Bandwidth | Could be customized | ||
| Gain | LTE | ≧ 60dB | ≧ 65dB |
| NR | ≧ 70dB | ≧ 75dB | |
| Output Power | LTE | ≧ 17dBm | ≧ 17dBm |
| NR | ≧ 20dBm | ≧ 20dBm | |
| Ripple in band | ≦±3dB | ||
| Manual gain control range（MGC） | 1~31dB, Step of 1dB | ||
| Automatic gain control range（AGC ） | ≥40 dB | ||
| VSWR | ≤2dB | ||
| Max input power without damage | -10 dBm | ||
| Spurious Emission | Fully comply with 3GPP | ||
| Input intermodulation | Fully comply with 3GPP | ||
| Output intermodulation | Fully comply with 3GPP | ||
| Error vector magnitude（EVM） | LTE≦8% RMS, NR≦3.5% RMS | ||
| ACRR | 5M | ≧33dB@P ≥ 31 dBm, ≧20dB @ P < 31 dBm | |
| 10M | ≧33dB@P ≥ 31 dBm, ≧20dB @ P < 31 dBm | ||
| Noise figure | ≤6dB | ||
| Time delay | ≤1μs | ||
| TDD synchronization | Adaptive synchronization | ||
| Local maintenance | LCD+ press buttons; Bluetooth connection mobile APP | ||
| Remote monitoring | 4G Modem, wireless connection network management cloud platform | ||
| Remote Monitoring Item | Operating temperature, Frequency, Gain, DL input level, DL output power, UL input level, UL output power, isolation, Device ID,Alarm information | ||
| Remote Set item | ALC threshold, UL and DL gain adjustment, Alarm threshold, Factory setting. | ||
| Power consumption | ≦15W | ||
| Power supply | AC (110~220V, 20%) to DC 12V/2A | ||
| RF connector | SMA -Female | ||
| Local control connector | Micro USB | ||
| Protect grade | IP40 | ||
| Heat dissipation | Aluminum alloy radiator natural heat dissipation | ||
| Shell material | ABS | ||
| Environment temperature | -10℃ ~ 55℃ | ||
| Environment humidity | ≦ 95% | ||
| Dimension | 224*160*38mm | ||
Penguat Sinyal HP 4G 2G (Amplitec)
| Berat | 5000 gram |
| Kondisi | Baru |
| Dilihat | 519 kali |
| Diskusi | Belum ada komentar |
